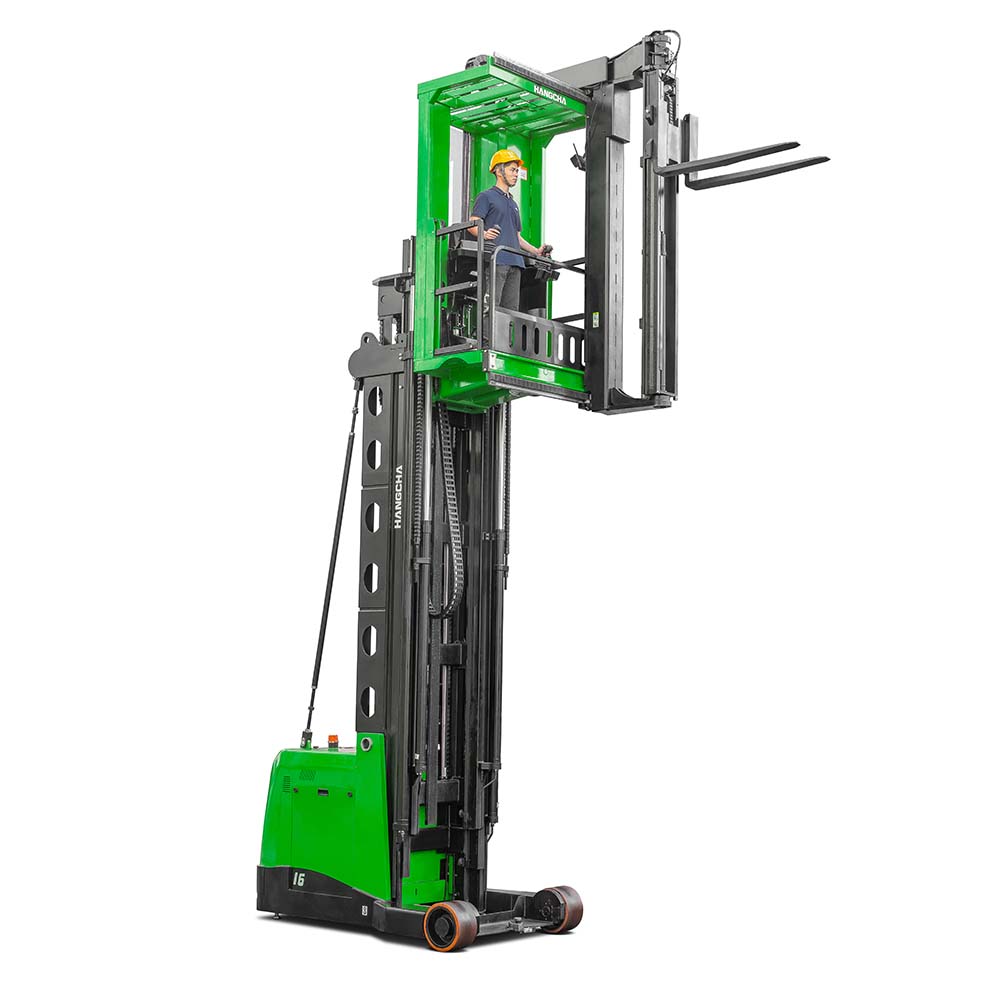

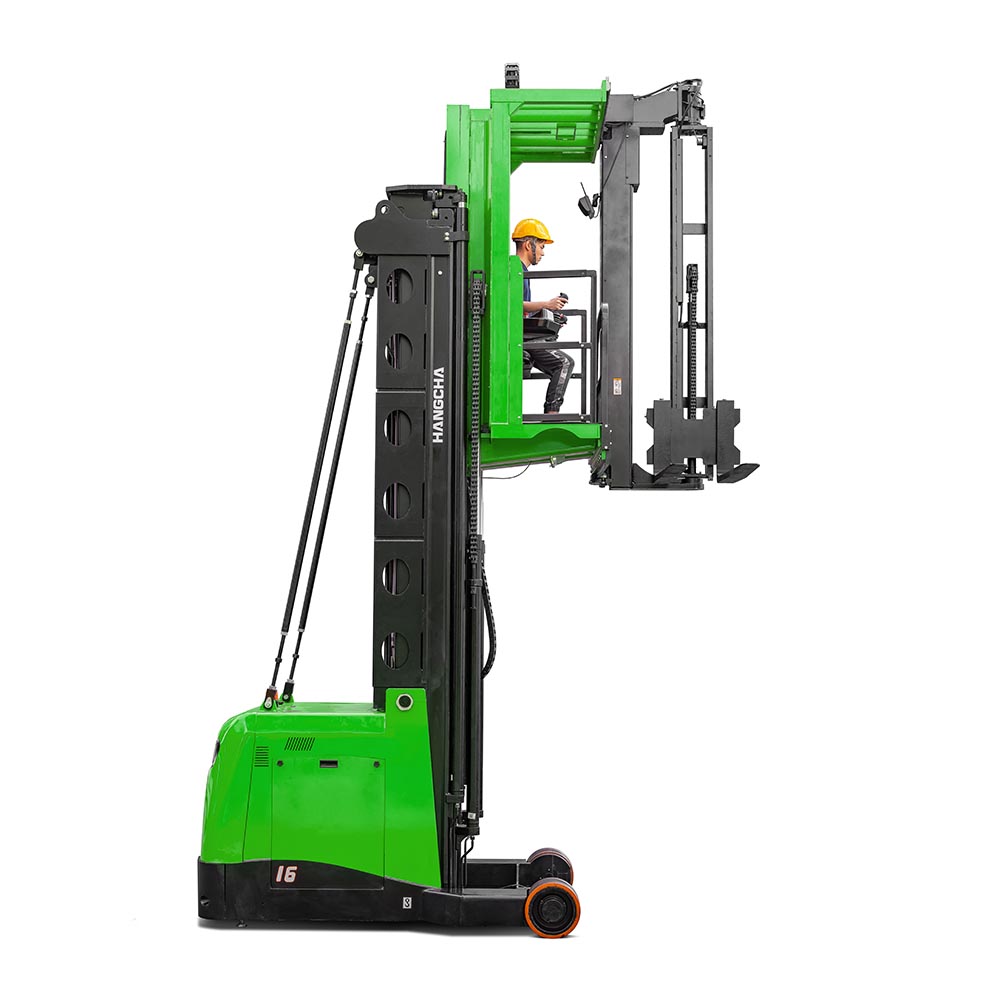

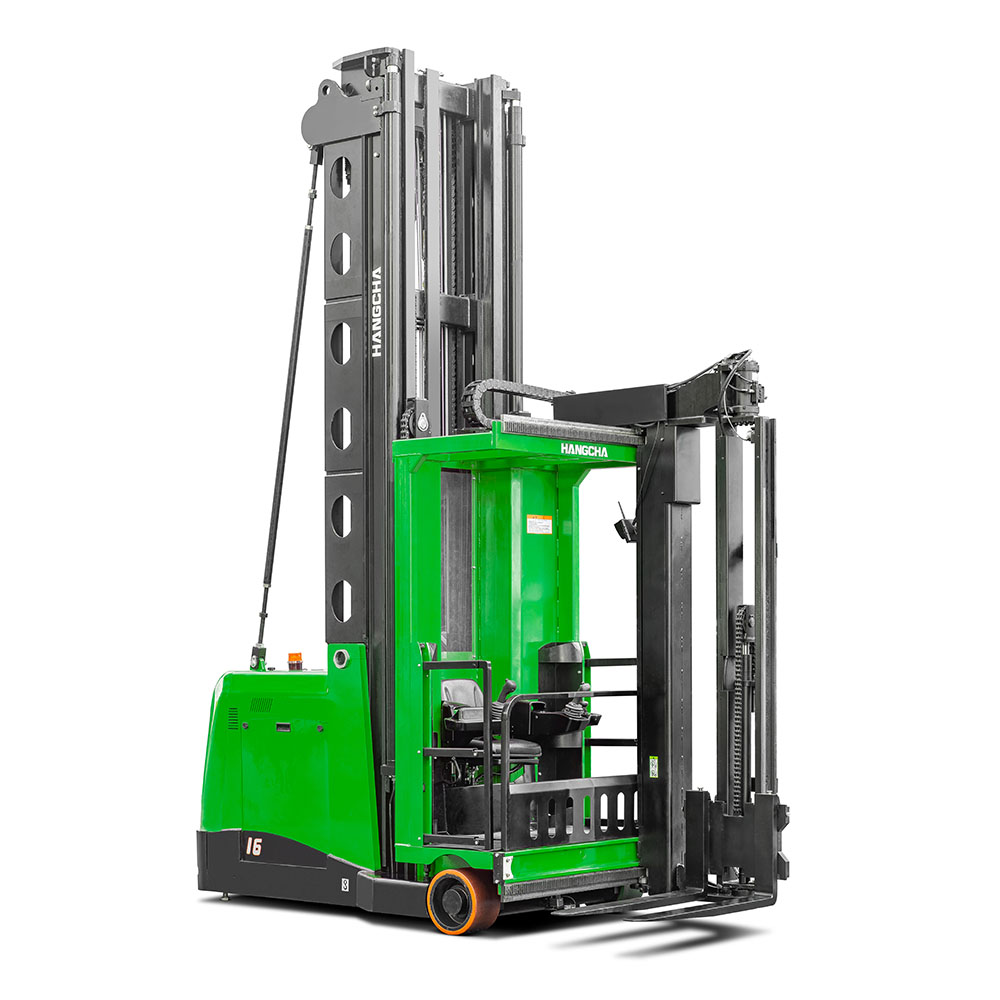

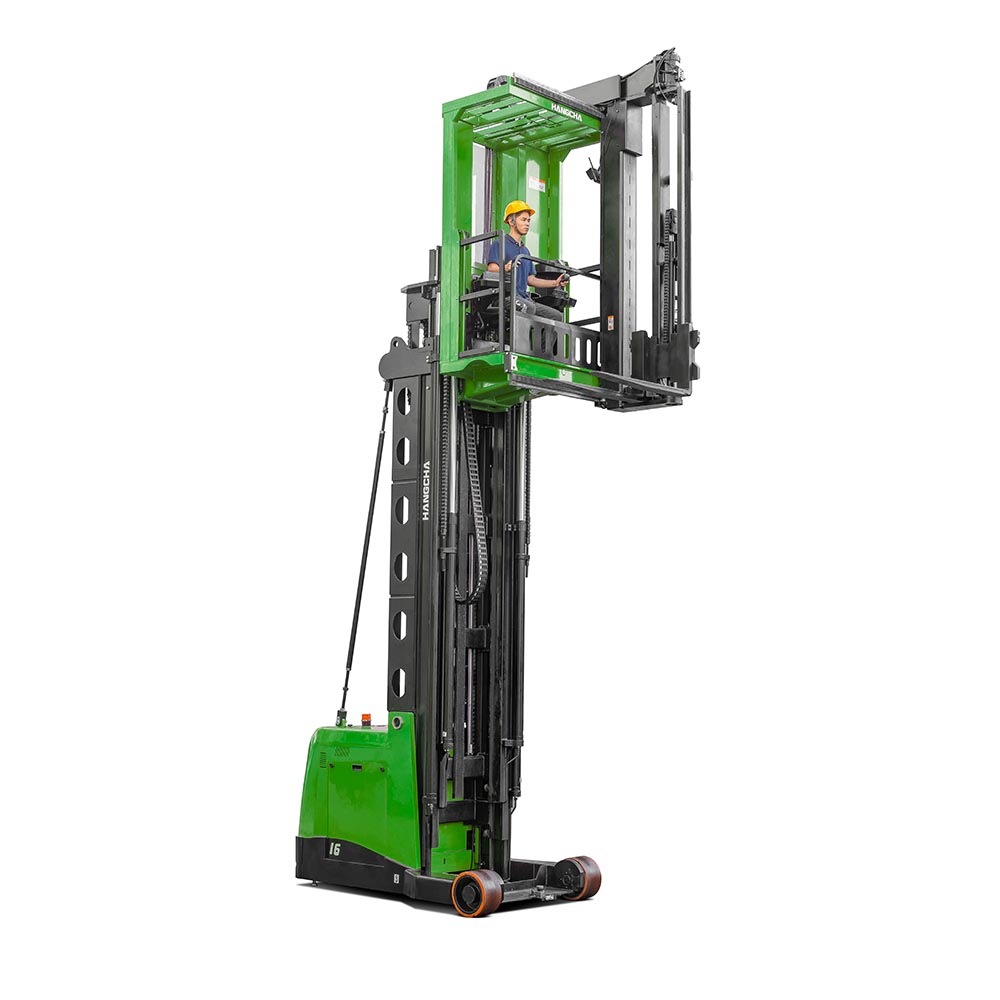

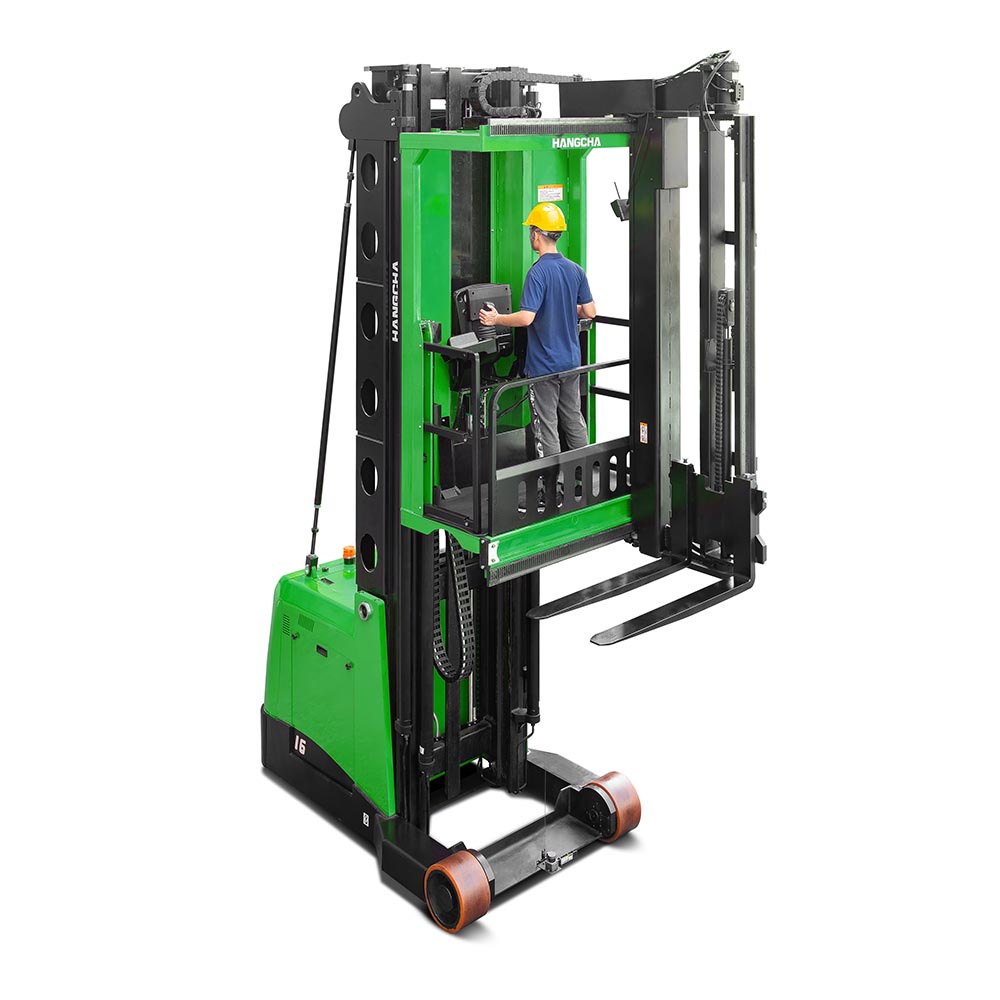

The 3,000-3,500lbs man-up tri-lateral stacker for narrow aisles and high bay warehouses can meet the needs of customers for operations in narrow aisles and high stacking heights. Featuring a high lift, high load capacity and small turning radius, as well as advanced performance, easy operations, high safety and reliability, etc., it is an ideal solution for handling and stacking long materials indoors.

Low step on height for easy on and off.

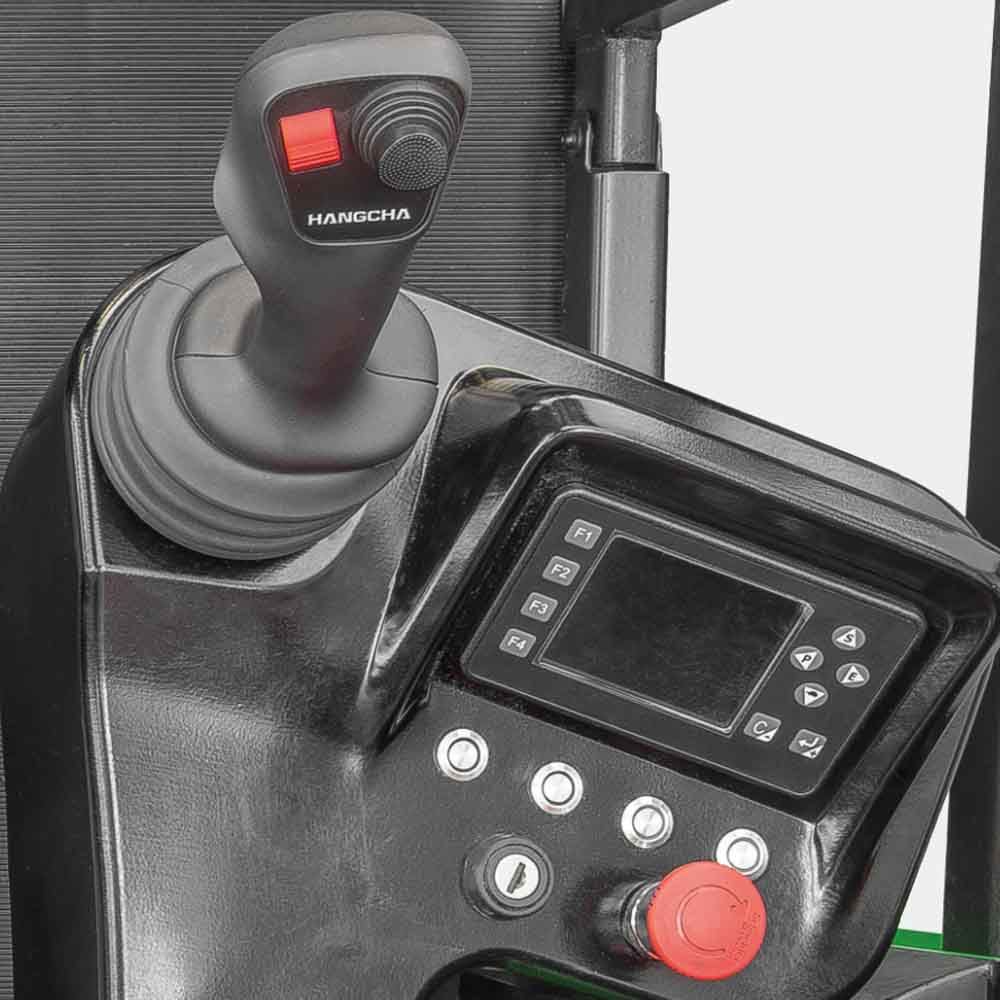

The ergonomically arranged joystick, instruments and switches make operations more comfortable and flexible.

Equipped with the electro-hydraulic control buffer system, the fork slows down automatically when arriving at an end of any position to reduce the impact.

  • Appearance

    Streamlined surface modelling, smooth profile outlines, attractive and agreeable.

  • Stability

    Wide body structure design allows the stacker to have good stability. Frame and mast made of high-strength framework structure and low center of gravity enable good stability.

  • Maximum efficiency

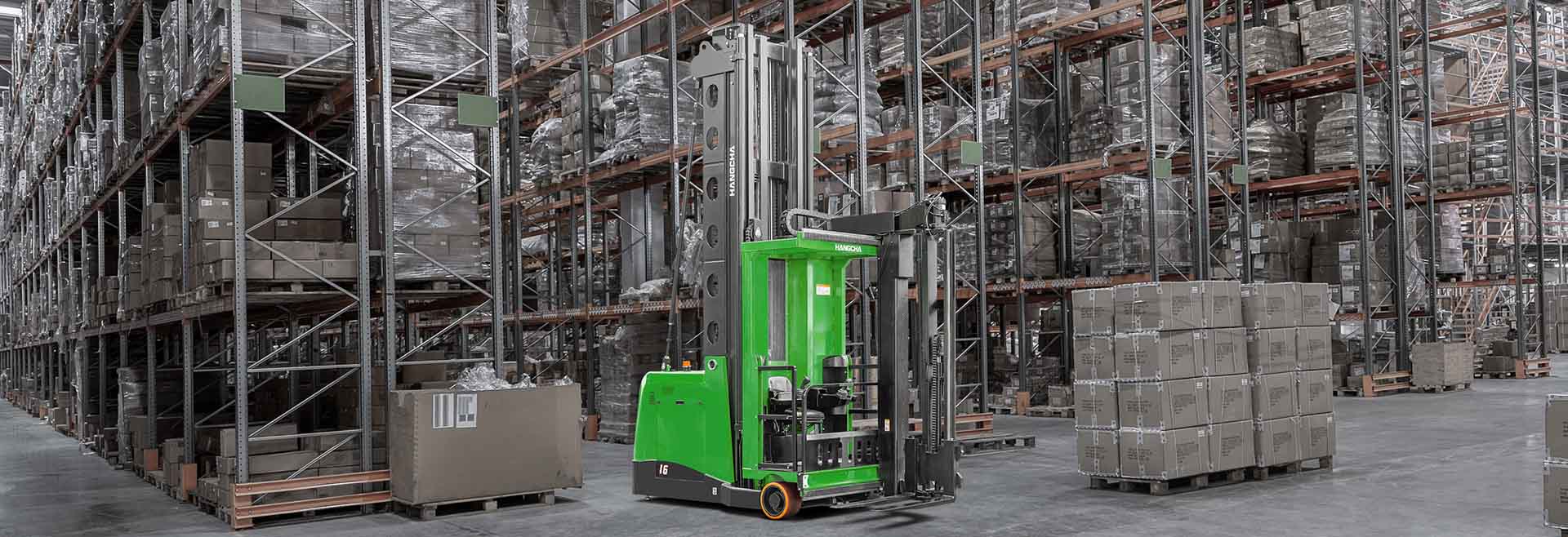

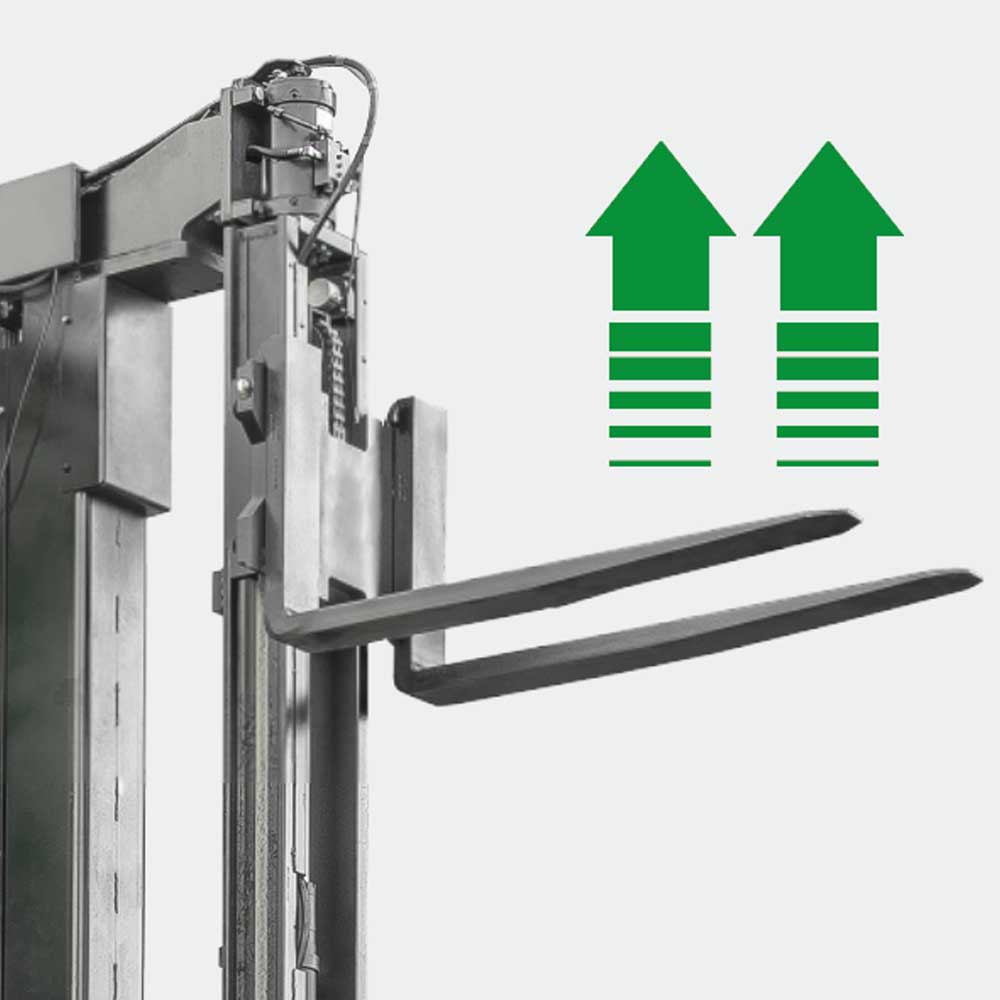

    The narrow aisles required for operations and the fork lift height up to 470.4 inch maximize the space availability of your warehouses. The high lift mast boasts high load capacity and improved stacking efficiency.

  • Advancement

    Electromagnetic brake is used to realize intelligent braking allows for more efficient and safer braking. With the advanced electro-hydraulic control system, the traveling speed is automatically associated with the lifting height and turning angle; The load weight is automatically associated with the lifting height; Thus the fork position is intelligently identified and the traveling speed is controlled.

  • Reliability and safety

    The low center of gravity at three pivots and the high strength of the main force-bearing components such as frame and mast are designed to meet heavy-duty operating conditions. The main electrical components such as the motor controller, contactor, power plug and emergency cut-off switch are all products of well-known brands.
